• This system and its installation must comply with state and local regulations. Check with your local public works department for plumbing and sanitation codes. In the event the codes conflict with any content in this manual the local codes should be followed.

   For installations in Massachusetts, Massachusetts Plumbing Code 248 CMR shall be adhered to. Consult your licensed plumber for installation of this system.
• This water Softener is designed to operate on pressures of 30 psi to 125 psi. If the water pressure is higher than the maximum, use a pressure reducing valve in the water supply line to the Softener. However, we do not recommend pressure above 70 psi for the softener or residential plumbing, anything over 70 psi can cause damage to the seals on the softener valve and you’re plumbing and fixtures.
• This unit can operate at temperatures between 40°F and 110°F (4°C - 43°C). Do not use this water softener on hot water supplies.
• Do not install this unit where it may be exposed to wet weather, direct sunlight, or temperatures outside of the range specified above unless you take precautions to protect it.
  Avoid pinched O-rings during installation by applying (provided with install kit) NSF certified lubricant to all seals.
• Softeners are commonly exposed to high levels of iron, manganese, sulfur, and sediments. Damage to pistons, seals, and or spacers within the control valve are not covered in this warranty due to the harsh environment.
• It is recommended to regularly inspect and service the control valve on an annual basis. Cleaning and or replacement of piston, seals, and or spacers may be necessary depending on how harsh the conditions are. An Annual Maintenance kit (Part # 60010307) is available for this purpose.
• Do not use water that is microbiologically unsafe without adequate disinfection before or after this system.
• The manufacturer reserves the right to make product improvements which may deviate from the specifications and descriptions stated herein, without obligation to change previously manufactured products or to note the change.
• This publication is based on information available when approved for printing. Continuing design refinement could cause changes that may not be included in this publication.
•  Quality Water Treatment, Inc. reserves the right to change the specifications referred to in this literature at any time, without prior notice.

ATTENTION:
Iron content must not exceed 1 ppm.

Beyond 1 ppm, an iron filter must be used. Periodic media cleaning is required by Pro-Res Cleaner is iron level exceed 0.3 ppm. Applies to private well or surface water applications only.

When using a softener to remove both hardness and dissolved iron it is important that it regenerates more frequently than ordinarily would be calculated for hardness removal alone.

Although many factors and formulas have been used to determine this frequency, it is recommended that the softener be regenerated when it has reached 50–75% of the calculated hardness alone capacity. This will minimize the potential for bed fouling. Applies to private well or surface water applications only.

If you are operating a water softener on clear water iron, regular resin bed cleaning is needed to keep the bed from coating with iron. Even when operating a softener on water with less than the maximum of dissolved iron, regular cleanings should be performed.

Clean every six months or more often if iron appears in your conditioned water supply. Use resin bed cleaning compounds carefully following the directions on the container. Applies to private well or surface water applications only.

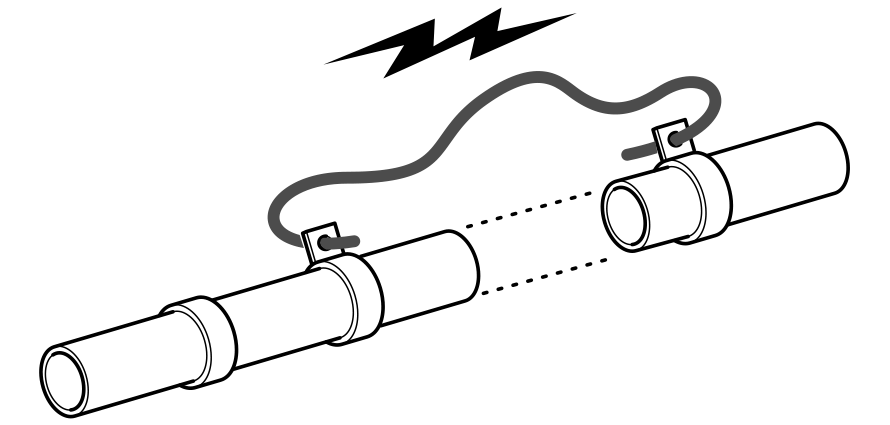

COPPER PIPES - GROUNDING STRAPS:

If the ground from the electrical panel or breaker box to the water meter or underground copper pipe is tied to the copper water lines and these lines are cut during installation of the Noryl bypass valve and/or poly pipe, an approved grounding strap must be used between the two lines that have been cut in order to maintain continuity.

The length of the grounding strap will depend upon the number of units being installed and/or the amount of copper pipe being replaced with plastic pipe.

In all cases where metal pipe was originally used and is later interrupted by poly pipe or the Noryl bypass valve or by physical separation, an approved ground clamp with no less than #6 copper conductor must be used for continuity, to maintain proper metallic pipe bonding.

CAUTION:
If the plumbing system is used as the ground leg of the electric supply, continuity should be maintained by installing ground straps around any non-conductive plastic piping used in installation. Check your local electrical code for the correct clamp.

DRAIN LINE INFORMATION:

Waste connections or drain outlets shall be designed and constructed to provide for connection to the sanitary waste system through an air gap of 2 pipe diameters or 1 inch (22 mm) whichever is larger.

Never insert a drain line directly into a drain, sewer line, or trap. Always allow an air gap between the drain line and the wastewater to prevent the possibility of sewage being backsiphoned into the softener.

LOCATE WATER TREATMENT EQUIPMENT CORRECTLY:

Select the location of your filter tank with care. Various conditions which contribute to proper location are as follows:

• Locate as close as possible to the water supply source.
• Locate as close as possible to a drain.
• Locate in the correct relationship to other water conditioning equipment.
• Softener should be located near the supply line before the water heater. Temperatures above 120°F damage softeners
• Do not install a softener in a location where freezing temperatures occur. Freezing may cause permanent damage to this type of equipment and will void the factory warranty.

• Plumb in a bypass for your treated water where your water source is a community water supply, a public water supply or if you wish to bypass water used for a geothermal heat pump, lawn sprinkling, out-buildings, or other high demand applications
• Keep the softener out of direct sunlight. The sun’s heat may soften and distort plastic parts.
• Determine the best location for your water filter. Factor in the location of water supply lines, drain line and 120-volt AC electrical outlet. Subjecting the Filter to freezing or temperatures above 43°C (110°F) will void the warranty.

MANUAL WATER BYPASS:

In case of an emergency such as filter mainte-nance, youcan isolate your water filter from the water supply using the bypass valve located at the back of the control. In normal operation the bypass is open with the ON/OFF knobs in line with the INLET and OUTLET pipes. To isolate the filter, simply rotate the knobs clockwise indicated by the word BYPASS and arrow) until they lock.

You can use your water related fixtures and appli-ances as the water supply is bypassing the filter. However, the water you use will be hard. To resume treated service, open the bypass valve by rotating the knobs counterclockwise.

Please make sure bypass knobs are fully opened during service,
otherwise the unsoftened water could bypass through the valve.

Tools Required:

• Flathead Screwdriver
• Phillips Head Screwdriver
• Tongue-and-Groove Pliers (i.e. Channellock)
• Adjustable Wrench
• Pipe Cutter or Hacksaw (as applicable)

Additional Parts (as applicable):

•  Drain tubing: 1/2” ID vinyl tubing & ½” hose clamp (length to reach the drainpipe)
•  Drainpipe connection and air gap fittings
•  Inlet & outlet connection plumbing items
•  Hose bibs and fittings (Optional, but recommended)

For Copper, PEX, and CPVC pipes (as applicable):

•  Fittings (Optional Quick-connect Hose Kit, or other quick-connect fittings. i.e. SharkBite)

For Copper, PEX, and CPVC pipes (as applicable):

• • Electrical grounding strapping, if this new install will cut/ separate any existing copper pipes.

For PVC Pipes (as applicable):

• PVC Primer & glue, Teflon tape, pipe and fittings
• Note: The optional Quick connect Hose kit does not work on PVC pipes.

UNPACKING AND INSPECTING YOUR NEW SYSTEM:

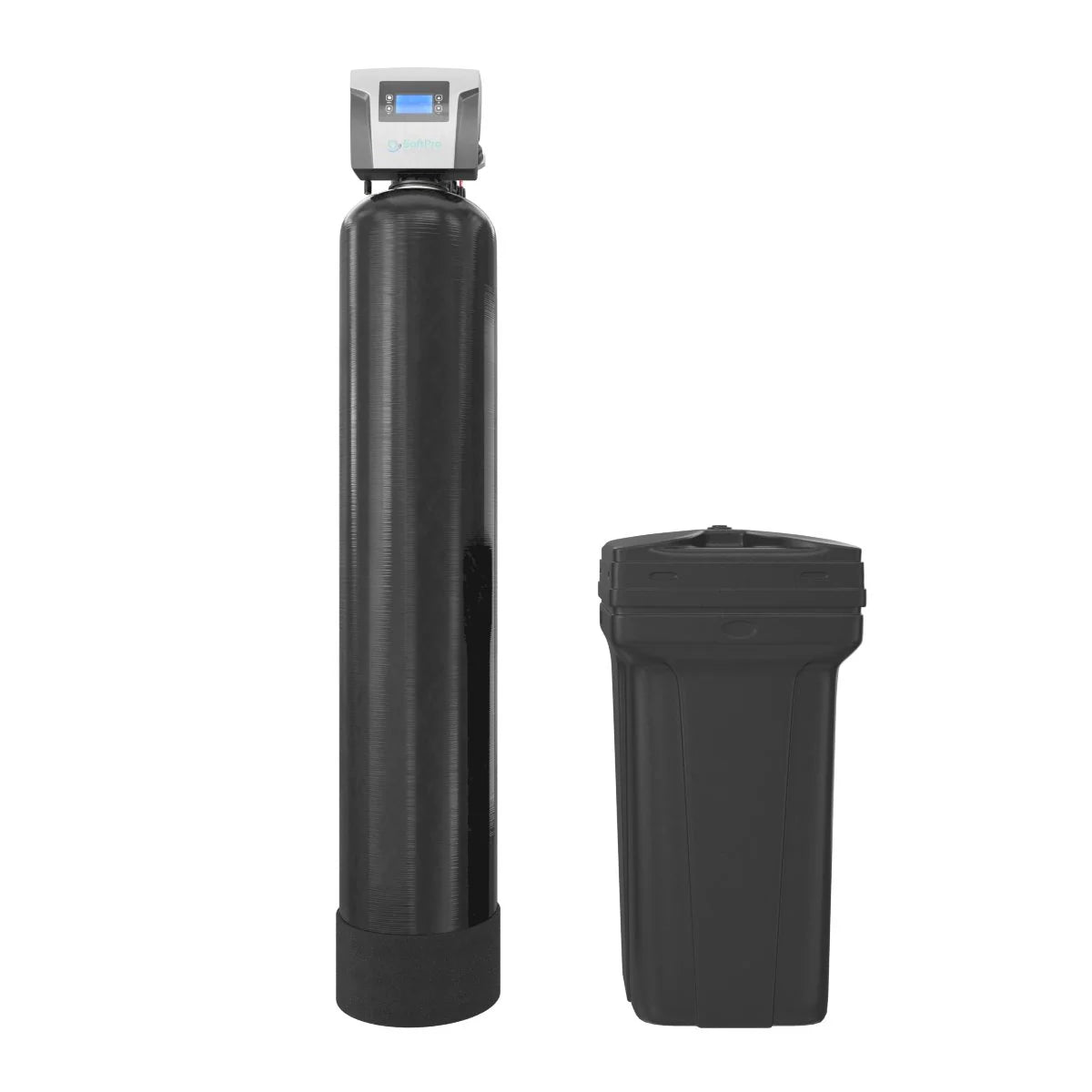

Your new SoftPro water softener system will include the following items.
Before starting, please check that you have all the items, and inspect for any possible damage that may have occurred during shipment.

(Note: This new system may have multiple shipments.)

SHIPMENT FAQ

1. Is it OK if some items are delivered on its side or upside-down?

Yes, it is OK.
If your shipment, boxes, or other items are delivered to you on its side or upside-down, do not be alarmed. Our team takes additional precautions to ensure that your new system is properly protected. Simply turn the shipment or box rightside up and unpack it.

2.  What if there is damage to the exterior of the shipment or boxes?

We got your back. If you find visual damage to the exterior of the boxes, take pictures of the boxes and/or video of the damage before unpacking them. Just because boxes are damaged does not mean the system is damaged, we make sure they are protected. So continue to unpack they system from boxes and inspect the system for damage.

3. After unpacking, what if there is damage to the valve, tank, or other equipment?

We got you. If you find visual damage to any of the parts, please take pictures and/or video of the damage. Then please immediately send us the images/ video, and we will get parts shipped to you.

4. After unpacking, what if there is a missing item?

Easy. If you are missing a part, please contact us to help get you set up properly.

Contact Support:
Web link: https://qualitywatertreatment.com/support
Email Address: Help@QualityWaterTreatment.com

1)  SoftPro Control Valve (packed inside the brinetank)

2)  Mineral Tank with Preloaded Media and Preinstalled Distributor Tube

3)  Diffusion Plate

4)   Bypass Valve

5)  1” Connectors (qty. 2)

6)  Check Valve, 1”

7)  Brine Line Air Check Valve

NOTE:
Media is pre-loaded in the filter tank.

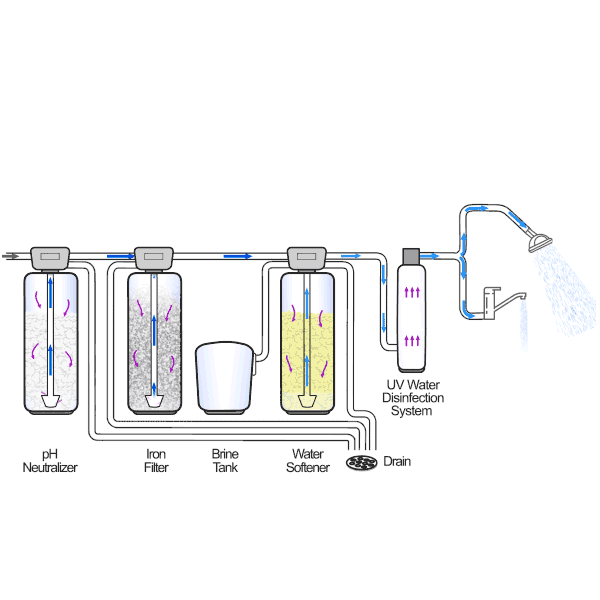

If you have additional water treatment filters (i.e. whole house filter, iron filter or pH neutralizer), those systems should always be installed before the water softener.

The water softener is the final treatment systems in your complete water treatment. (The exception is for a UV Disinfection System, which will be placed after the water filter.)

You are now ready to install your new water
filter system.

Do you have existing copper water pipes?

Prior to a new installation of the water filter, in all cases where metal pipe was originally used and is later interrupted by poly pipe or the bypass valve or by physical separation, an approved ground clamp with no less than #6 copper conductor must be used for grounding continuity, to maintain proper metallic pipe bonding.

Refer to your local building code.

CAUTION:
If the ground from the electrical panel or breaker box to the water meter or underground copper pipe is tied to the copper water lines and these lines are cut during installation of the Noryl bypass valve and/or poly pipe, an approved grounding strap must be used around the two lines that have been cut in order to maintain continuity. The length/ size of the grounding strap will depend upon the number of units being installed and/or the amount of copper pipe being replaced with plastic pipe.

A) NEW INSTALL WITH A PRE-PLUMBED WATER SOFTENER LOOP

1) Switch-off the breaker to the hot water heater. At the electrical control panel, temporarily switch off the power feeding the water heater unit.

2) Shut-off the water main.

3) Drain any existng water from both the cold and hot water pipes. Simply, open all of the sink and bathtub faucets to empty the remaining water in the pipes. Drain completely.

TIP: In additon, you can also remove a shower head (since it is located high) to create a vacuum so pipes can drain better.

4) Cut the water line softener loop and cut/ unplug the appropriate drain line. Place a bucket to catch the water from the softener loop.

5) Identify and label the inlet (supply), and the outlet plumbing pipes. ▪ To identify the inlet (supply pipe), very slightly, turn open the water main supply to identify which pipe is the water supply line. The pipe with water flowing out (supply side), should be labelled: “INLET”. Label the other pipe: “OUTLET”.

B) NEW INSTALL WITH A WATER HEATER LOOP

1) Check that untreated water supply return was plumbed. Refer to the illustration.
▪ This untreated water line supplies the water heater and the home.

2) Turn off the water heater.

   a) For electrical heaters:
Switch-off the breaker to the hot water heater. At the electrical control panel, temporarily switch off the power fee ding the water heater unit.

   b) For gas heaters:
Turn off the pilot light. (After installation, re-light the pilot light.)

3) Shut-off the water main.

4) Shut-off the water heater valve, if applicable.

5) Drain any existing water from both the cold and hot water pipes. Simply, open all of the sink and bathtub faucets to empty the remaining water in the pipes. Drain completely.

TIP: In addition, you can also remove a shower head (since it is located high) to create a vacuum so pipes can drain better.

6) Cut the untreated water line loop. Use a bucket to catch any water from the softener loop.

Cut the water line softener loop and cut/ unplug the appropriate drain line. Use a bucket to catch any water from the softener loop. (Use the appropriate cuttng tool for the different types of pipes (copper, PVC, PEX, CPVC, etc.)

7) Identify and label the inlet (supply), and the outlet plumbing pipes.

▪ To identify the inlet (supply pipe), very slightly, turn open the water main supply to identify which pipe is the water supply line. The pipe with water flowing out (supply side ), should be labelled: “INLET”.
Label the other pipe: “OUTLET”.

8) Plumb the new softener water lines to the water softener location.
Refer to the illustration.

C) NEW INSTALL BY RE-ROUTING A HOME’S WATER SUPPLY LINE

1) Locate the main water supply line entering into the home.

2) Switch-off the breaker to the hot water heater. At the electrical control panel, temporarily switch off the power feeding the water heater unit.

3) Shut-off the water main.

4) Drain any existing water from both the cold and hot water pipes. Simply, open all of the sink and bathtub faucets to empty the remaiming water in the pipes. Drain completely

TIP: In addtion, you can also remove a shower head (since it is located high) to create a vacuum so pipes can drain better.

5) Cut the water main to plumb in the softener loop. Use a bucket to catch any water from the water main.

6) Plumb the new softener water lines to the water softener location.

7) Identify and label the inlet (supply), and the outlet plumbing pipes.

• To identify the inlet (supply pipe), very slightly, turn open the water main supply to identify which pipe is the water supply line.

The pipe with water flowing out (supply side), should be labelled: “INLET”. Label the other pipe: “OUTLET”.

D)  NEW INSTALL FOR PRIVATE WELL WATER

NOTE:
THE WATER SOFTENER MUST BE INSTALLED AFTER THE PRESSURE TANK.

The softener will not operate properly if installed before the pressure tank

1) Shut-off the power off to the well pump.

2) Switch-off the breaker to the hot water heater.
At the electrical control panel, temporarily switch off the power feeding the water heater unit

3) Release the water pressure by opening a faucet to drain the pressure tank.

4) Drain any existing water from both the cold and hot water pipes.
• Simply, open all of the sink and bathtub faucets to empty the remaining water in the pipes. Drain completely.
• Tip: In addition, you can also remove a shower head (since it is located high) to create a vacuum so pipes can drain better.

5) Cut the water supply line after the pressure tank and after any following irrigation lines. Use a bucket to catch any water from the water main.

6) Plumb the new softener water lines to the water softener location.

7) Identify and label the inlet (supply), and the outlet plumbing pipes.
• To identify the inlet (supply pipe), very slightly, turn open the water main supply to identify which pipe is the water supply line. The pipe with water flowing out (supply side), should be labelled: “INLET”. Label the other pipe: “OUTLET”.

1) ASSEMBLE THE NEW FILTER

Water Filter Assembly 4 Steps:

2) PREPARE FOR THE INSTALLATION OF THE NEW WATER FILTER

Using Additional Whole House Filters Or Other Treatment Systems?

If you have additional water treatment filters (i.e. whole house filter, iron filter or pH neutralizer), those systems should always be installed before the water softener.

The water softener is the final treatment systems in your complete water treatment. (The exception is for a UV Disinfection System, which will be placed after the water filter.)

1) Verify and clear the location of the new water filter system.

a) Clear and clean the areas.

b) Prepare the nearest electrical outlet and drain locations. Verify the drain type for connection and applicableparts to be required.

c) Prepare the filter’s inlet and outlet water pipe connections.

2) Switch-off the breaker to the hot water heater. At the electrical control panel, temporarily switch off the power feeding the water heater unit.

3) Shut-off the main water supply.

• Close the water main shut-off valve to the home. It is usually located in the front of the property.

• Alternatively, if you have a shut-off valve as water enters home (usually a ball or gate valve in the front of the building), then you can opt shut-off the home water supply there.

4) Drain any existing water from both the cold and hot water pipes. Simply, open all of the sink and bathtub faucets to empty the remai-ning water in the pipes. Drain complete

Helpful tip:
In addition, you can also remove a shower head (since it is located high) to create a vacuum so pipes can drain better.

5) Label the inlet (supply), and the outlet plumbing pipes. The pipe with water flowing into the filter control valve (supply side) should be labelled: “INLET”.

To identify the inlet (supply pipe), very slightly, turn open the water main supply to identify which pipe is the water supply line. The pipe with water flowing out (supply side), should be labelled: “INLET”. Label the other pipe: “OUTLET”.

3) REPLACING AN EXISTING WATER FILTER

If applicable, the following guide is typical of how common water filters are removed. If you find that your existing setup is unconventional, please take pictures and videos to send to our support team to review.

1) Set the existing filter bypass valve to the bypass position. When set to bypass mode, water will not enter into the filter tank.

(Examples of some different types of bypass valves)

Bypass valve models may vary by manufacturer (examples below). The bypass valve is attached at the rear of the water filter control valve. It is where the pipe (copper, PEX, PVC, CPVC) connects to the water filter pipe.

If the bypass valve includes the inlet and outlet valves, then close both the inlet and outlet valves. If the bypass valve has one stem, close the plunger into the stem or pull handle as shown in the first image.

2) Disconnect power supply.

3) Disconnect & remove the old filter tank.

a. Disconnect both the inlet and the outlet plumbing lines to the old filter. Use a bucket to capture any residual water                   in the pipes.
b. Disconnect the drain tube from the filter valve.
c. Remove the old filter from the area.

4) Clear and clean the area for the new water filter system.

Proper Disposal:
Please dispose of the old filter tank properly.

You are now ready to install your new water
 filter system.

4) CONNECT THE NEW WATER FILTER

1) Position the water filter tank assembly in front of the plumbing.

2) Connect the inlet (supply side) and outlet plumbing lines to the filter bypass valve. Use either connection type as previously installed on the bypass valve.

a) Connect the 1” check valve to the inlet plumbing side.

Clarification:
Install the check valve prior to water entering into the iron filter’s control valve.

b) Standard connection:
Connect the plumbing to the connection adapters. Match the corresponding inlet and outlet sides.

3) Connect the filter drain line tubing to the drain port.

NOTE:
Do not remove the pre-installed drain port hose barb fitting from the SoftPro control valve.

a) Attach a 1/2” ID drain tube onto the drain port adapter on the control valve. Secure using a hose clamp.

b) Run the drain tube to the drain as appropriate.
 a. Common drains include: existing filter drain, floor drain, laundry tub/ sink, sanitary sewer line and washing machine drain.

4) Attach the brine line air check assembly to the control valve.

(After install, the air check assembly can be pointed in any direction.)

Hand-tighten only. Do not over-tighten.

NOTICE:
Inspect and check that the brine line air check assembly is connected to the valve.

NOTICE:
Ensure that the brass and plastic nut connected to the air check assembly is tight.

The filter system plumbing is now complete.

5) INITIAL WATER FILTER START UP

1) Turn the power back on.
    a) Switch the water heater back on.
     • Restart the water heater pilot, as applicable.
     • Turn-on the well water pump, if applicable.

2) Power up the filter control valve, plug into the power outlet.

3)   Starting the water supply to the filter mineral tank.
  a) Verify that the bypass valve is in the bypass position.
  b) Re-open the water main valve. a. Re-open the water heater valve, if applicable.
  c) SLOWLY turn open the INLET side of the filter bypass valve until the filter tank fills with water. Do not fully open the               inlet valve (open to about a quarter of a turn).

     a. Once the filter tank is full, the water will stop running.
     b. Then fully open the inlet side of the bypass valve.

d) SLOWLY turn open the OUTLET side of the filter bypass valve.

Bypass handles (red) may initially be stiff to turn.
You may opt to use the included Allen wrench as leverage to open the bypass valves. Simply insert the wrench into the top of each red handle and slowly turn open.

4)  Initial cleaning of the filter mineral tank.
      a) Open the nearest softened treated cold-water faucet or hose bib and run the water until it shows clear.
           a. Periodically use a clear container to view the water clarity.

      b) Let the water run until the water shows clear in the container. This is to bleed out the resin’s color and air.

      c) Once the water runs clear into the container, turn off the faucet or hose bib. Your new filter is ready and in service                   operation.

NOTE:
The filter media is pre-charged.
Initial manual regeneration is NOT required. Media has been previously pre-charged and ready for use.

5) Complete the programming of your new control valve.
     Please refer to the following valve programming guide.

SET AUTO CALCULATION

1. Press UP and DOWN arrow at the same time until system beeps.

2. Once the system beeps you get Factory Mode.

3. Press DOWN arrow to get Auto Calculation.

4. Press SET. Attention: Make sure Auto Calculation is set to OFF.

5. Use UP and DOWN arrow to set Auto Calculation to OFF.

6. Press SET.

SET DATE AND TIME:

1. Press MENU once, screen may blank out.

2. After few seconds, you get  home screen.

3. Press MENU to display Date and Time setting.

4. Press SET to enter Date and Time

5. Use UP and DOWN arrows to select the appropriate Date, Month, Year and Time

ATTENTION: Make sure you set the time accordingly as it relates to when the softener valve rege-nerate, if it is an inappropriate time of the day it is not going to regenerate at the right time.

6. Press SET after each selection to move to the next field.

7. Once Date, Month, Year and Time is selected, press SET to complete the setting

8. Press MENU to return to the home screen.

REGEN. TIME SETTING

1. Press DOWN arrow until you get Main Menu.

2. Press SET.

ATTENTION:
STAGGER THE SOFTENER AND IRON FILTER REGEN TIMES. Water softeners and filters are typically set to 2:00 am. If you have purchased water softener and iron filter from us, they will both be set to 2:00 am.

You do not want to go both system regen at the same time. If applicable, set Regen. Time to 4:00 am or another time to get a minimum of a two (2) hour window before or after the time that the softener regenerates.

REGEN. TIME SETTING

3. Use UP and DOWN arrow to set Regen. Time

4. Press SET.

5. Press MENU to return.

SET REGEN. MODE

1. Press DOWN arrow until you get Advanced Menu.

2. Press SET until it beeps

3. Press SET once Regen. Mode is highlighted

4. Press UP arrow until you get Days.

5. Once Days are highlighted, press SET.

6. Press Menu to return.

SET REGEN. CYCLES – BRINE DRAW DURATION
^{(For the Brine Line Air Check Setting)}

1. Press DOWN arrow until you get Regen.Cycles

2. Once Regen. Cycles is highlighted, press SET.

3. Under Regen. Cycles you will get Brine Draw Duration. Once this is highlighted, press SET

4. Use UP and DOWN arrow to set Brine Draw Duration to 60 minutes, then Press SET.

6. Press Menu to return.

ATTENTION:
Make sure Brine Draw
Duration is set to 60 minutes.

SET REGEN. CYCLES – BACKWASH DURATION:

1. Press DOWN arrow until you get Backwash Duration.

2. Press SET once Backwash Duration is highlighted.

ATTENTION:
Make sure Backwash Duration is set to 10 minutes

3. Use UP and DOWN arrow to set Backwash Duration to 15 minutes.

4. Press SET.

5. Press Menu to return.

SET REGEN. CYCLES – RINSE DURATION

1. Press DOWN arrow until you get Rinse Duration.

2. Press SET once Rinse Duration is highlighted.

ATTENTION:
Make sure Rinse Duration
is set to 0 minutes (zero).

3. Use UP and DOWN arrow to set Rinse Duration.

4. Press SET once Rinse Duration is set to zero (0) minutes.

5. Press Menu to return.

1. Press DOWN arrow until you get Refill Duration.

2. Press SET once Refill Duration is highlighted.

ATTENTION:
Make sure Refill Duration is
set to Zero.

3. Use UP and DOWN arrow to set Refill Duration to Zero.

4. Press SET after each selection to move to the next field.

5. Once Refill Duration is set to Zero, press SET. Press Menu to Return.

REGEN. DAYS SETTING

1. Press MENU to get Advanced Menu screen.

2. Press SET once Rinse Duration is highlighted.

3. Press UP arrow to select Regen. Days Setting.

4. Press SET once Regen. Days Setting is highlighted.

ATTENTION: Make sure
Regen. Days is set to 4 Days.

5. Use UP and DOWN arrow to set Regen. Days to 4 days.

6. Press SET once Regen. Days are set to 4

7. Press MENU multiple times to return to home screen.
